Jumbo Roll Dia1100mm PLC HMI Tissue Paper Production Machine

MOQ : 1 SET

Price : USD 20000-300000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per month

Delivery Time : 30-60 days

Voltage : 380V,220V50HZ/380V50HZ,220/380/480 volt,3 Phase,220V 50Hz

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support

Product type : Paper Napkin Machine,Paper making machinery,facial tissue making

Warranty : 1 Year

Processing type : Paper Folding Machine,paper making machine

Raw material : jumbo roll

Name : Full Automatic Facial Tissue Paper Production Line

Output paper : Facial Paper,Napkin Paper

Product name : Hand towel tissue paper making machine full production line,High Speed Facial Tissue Paper Making Machine

Contact Now

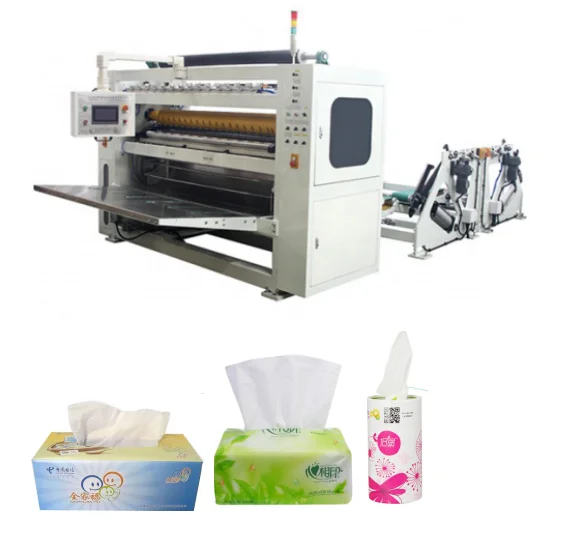

full automatic facial tissue paper production line with box packing machine

full automatic facial tissue paper v/n folding machine

this model is designed to produce `link type head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers’ selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed.

We can make the machine with 4lines 5 lines and 6 lines.Production Lines generally use 6 lines and7 lines.9linse

1) Adopt PLC & HMI control system, easy to operate,

2) Each unit is driven by independent motor, could easily adjust web tension of each position

3) Independent wall-type back-stand, structure is simpler and stronger, easy to clean.

Jumbo Roll Dia1100mm PLC HMI Tissue Paper Production Machine

final product size (mm)	185×210 mm and 200x160mm(Other specification, please specify)
Diameter of jumbo roll(mm)	1100(Other specification, please specify)
Core inner dia. of jumbo roll	76mm(Other specification, please specify)
Production speed	120 meter/min.
Power	3 phase, 380V/50HZ,
Controller	Frequency control
Cutting system	point cut by pneumatic type
Vacuum system	22 KW Roots vacuum system
Pneumatic system	3P Air compressor ,minimum pressure 5kg/cm2 Pa( prepared by customer)
Host power	7.5 KW
Overall dimension	6000×2300×1920 mm
Machine weight	2.5T

Jumbo Roll Dia1100mm PLC HMI Tissue Paper Production Machine

ZODE machinery tissue paper cutting and packing machine

Jumbo Roll Dia1100mm PLC HMI Tissue Paper Production Machine

full automatic facial tissue paper box packing machine

Main performances and structure features:

1.Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.

2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6. Change of specifications does not need change of molds, but can be realized through adjustment.

7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.

It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,round box tissue ,cotton tissues etc.

Items	Technical parameters
Packing dimension (mm)	Max:L240mm×W120mm×H100mm
Packing dimension (mm)	Min:L110mm×W110mm×H30mm
Paper requirement	300-400G/M3
packing speed(bags/min)	85pcs/min
Glue machine power supply(KW)	2.32
Packing machine power supply(KW)	2.74
Totally power supply(KW)	5.1
Electric type	3phase 4wire
Machine noise(DB)	less than 80
Weight (KG)	3500
Outline dimension (mm)	3513×3023×1650
Air supply(MPA)	0.5-0.8

Samples

Jumbo Roll Dia1100mm PLC HMI Tissue Paper Production Machine
